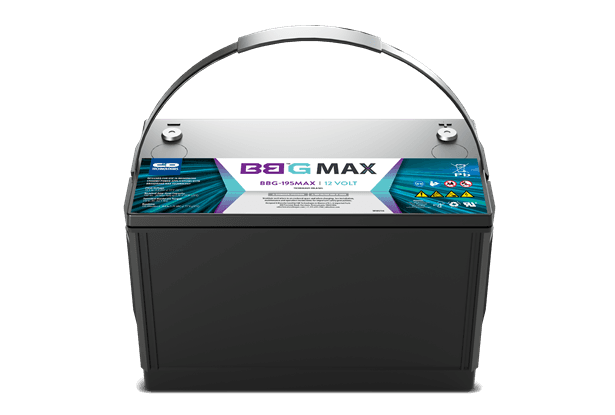

Broadband BBG MAX Gel Battery for Telecom
Broadband BBG MAX Gel Battery
Exceptional longevity and reliable operation
These advanced telecom batteries feature a gelled electrolyte that dissipates heat more effectively. They have a catalyst-enhanced design, resulting in lower float current and improved long-term efficiency. Designed specifically for broadband applications, BBG MAX batteries meet the demanding requirements of CATV Outside Plant (OSP) network sites, providing dependable backup power to support critical infrastructure and network reliability.
Features & Benefits
Extended service life: Gelled electrolyte combined with a catalyst helps maximize battery life and deliver long-lasting performance.
Reliability: Gel technology delivers dependable performance in extreme environments, including the harshest operating conditions.
Support sustainability: Lower your energy demand and cooling costs. Broadband MAX batteries are 98% recyclable, and manufactured with up to 80% recycled materials.
Reduced operational expenses: Exceptional battery life extends replacement intervals, minimizing site visits and improving operational efficiency.
- MSE Pure Lead technology reduces water loss by up to 50%, lowers float current, and improves grid life to help extend battery service life.
- Gelled electrolyte delivers superior thermal management for enhanced performance in demanding environments.
- Premium materials and components, including a rugged polypropylene case, provide long-term reliability and protection in harsh operating conditions.
- Extended shelf life with storage capability of up to 18 months for VRLA GEL models.
12-volt monobloc design incorporating Valve Regulated Lead Acid (VRLA) and Gelled Electrolyte (GEL) technologies.
BBG MAX Broadband Battery
| Model | Voltage | Runtime Minutes to 24 Amps @77°F (25°C) to 1.75 VPC | Maximum Discharge Current | Short Circuit Current | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|---|---|
| BBG-180MAX | 12V | 180 | 800 Amps | 2300 Amps | 12.50 (318) | 6.83 (174) | 8.05 (205) | 63 (29) |
| BBG-195MAX | 12V | 195 | 800 Amps | 2500 Amps | 13.42 (341) | 6.80 (173) | 8.48 (215) | 66 (30) |
| BBG-220MAX | 12V | 220 | 800 Amps | 2600 Amps | 13.42 (341) | 6.80 (173) | 8.48 (215) | 73 (33) |
