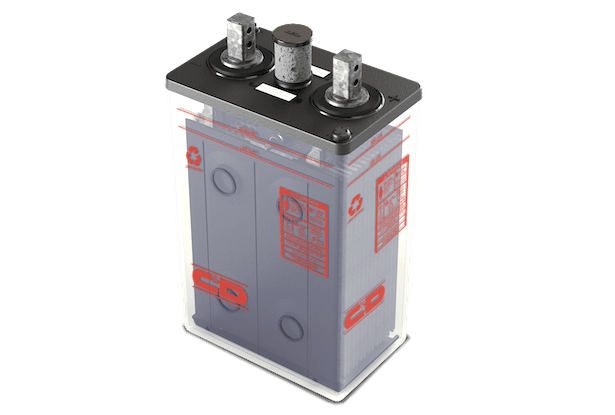

KCR Flooded Battery
Designed to offer a wide range of capacities within a small footprint, the KCR Flooded Battery excels in a energy and infrastructure applications. The lifespan and performance of this lead acid battery are enhanced by a proprietary alloy and process. KCR is Class 1E certified for nuclear applications.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
200 - 825
design life
20 Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
Class 1E certified for nuclear applications TAA Compliant BAA Compliant
industries
Features & Benefits
- Single-cell design for reduced weight per jar and ease of handling
- Proven history of 20+ years of service life
- Copper-inserted posts reduce resistance and increase system reliability
- Dual hole post design allows connector maintenance without removing the battery from service
- 100% Out of box capacity
- Waterbath charging results in consistently formed plates for reliable performance
- Computer-controlled heli-arc welded post seals result in consistent and reliable seals for less maintenance and longer product life.
Model Technical Data
| Model | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight Net Filled lbs (kg) | Terminals |
|---|---|---|---|---|---|
| KCR-5 | 3.62 (91.9) | 10.44 (265) | 18.25 (464) | 45 (20.4) | Two, 1-inch (25 mm) square posts with two thru-holes |
| KCR-7 | 3.62 (91.9) | 10.44 (265) | 18.25 (464) | 56 (25.4) | Two, 1-inch (25 mm) square posts with two thru-holes |
| KCR-9 | 4.62 (117) | 10.44 (265) | 18.25 (464) | 73 (33.1) | Two, 1-inch (25 mm) square posts with two thru-holes |
| KCR-11 | 4.62 (117) | 10.44 (265) | 18.25 (464) | 82 (37.2) | Two, 1-inch (25 mm) square posts with two thru-holes |
| KCR-13 | 5.59 (142) | 10.44 (265) | 18.25 (464) | 97 (44.0) | Two, 1-inch (25 mm) square posts with two thru-holes |
| KCR-15 | 6.59 (167) | 10.44 (265) | 18.25 (464) | 114 (51.7) | Two, 1-inch (25 mm) square copper-inserted posts with two thru-holes |
| KCR-17 | 8.53 (217) | 10.44 (265) | 18.25 (464) | 134 (60.8) | Two, 1-inch (25 mm) square copper-inserted posts with two thru-holes |
| KCR-19 | 8.53 (217) | 10.44 (265) | 18.25 (464) | 143 (64.9) | Two, 1-inch (25 mm) square copper-inserted posts with two thru-holes |
| KCR-21 | 8.53 (217) | 10.44 (265) | 18.25 (464) | 152 (68.9) | Two, 1-inch (25 mm) square copper-inserted posts with two thru-holes |
*H (Height) dimension is to the top of the flame arresting vent (highest point on the cell).
