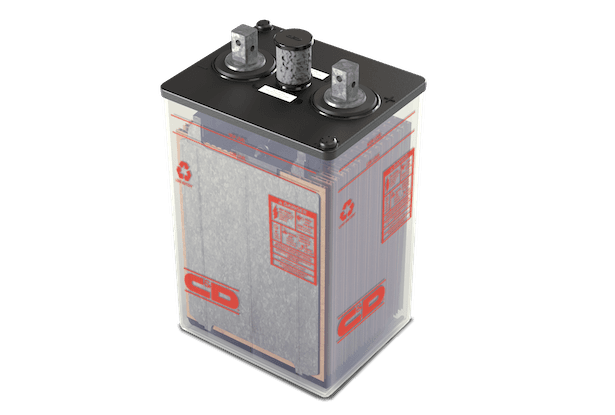

KCT Flooded Battery
KCT Flooded Battery
Capacities from 270 to 720 Ampere-hours
The NEBS-approved KCT battery offers a wide range of capacities within a small footprint, making it ideal for a range of Telecom applications. KCT lead-calcium stationary batteries can be found in telephone central offices, mobile telephone switching offices, cable headend sites, fiber optic regenerator sites, microwave repeater sites, telephone and internet network nodes, and more.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
270 - 720 Amp-Hours
design life
20 Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
TAA Compliant BAA Compliant NEBS Level 3 Compliant
industries
Features & Benefits
- Single-cell design for reduced weight per jar and ease of handling
- Proven history of 20-year service life
- Dual hole post design allows connector maintenance without removing the battery from service (KCR-17 through KCR-21)
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- 100% of cells are capacity tested in the factory
- Waterbath charging results in consistently formed plates for reliable performance
- Computer-controlled heli-arc welded post seals result in consistent and reliable seals for less maintenance and longer product life.
Model Technical Data
| Model | Cells per unit | Plates per cell | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight Net Filled lbs (kgs) |
|---|---|---|---|---|---|---|
| KCT-270 | 1 | 7 | 3.62 (92) | 10.44 (265) | 18.25 (464) | 57 (25.9) |
| KCT-360 | 1 | 9 | 4.62 (117) | 10.44 (265) | 18.25 (464) | 77 (34.9) |
| KCT-450 | 1 | 11 | 5.59 (142) | 10.44 (265) | 18.25 (464) | 94 (42.6) |
| KCT-540 | 1 | 13 | 6.59 (167) | 10.44 (265) | 18.25 (464) | 111 (50.3) |
| KCT-660 | 1 | 15 | 8.53 (217) | 10.44 (265) | 18.25 (464) | 136 (61.7) |
| KCT-770 | 1 | 17 | 8.53 (217) | 10.44 (265) | 18.25 (464) | 143 (64.9) |
Telecom
