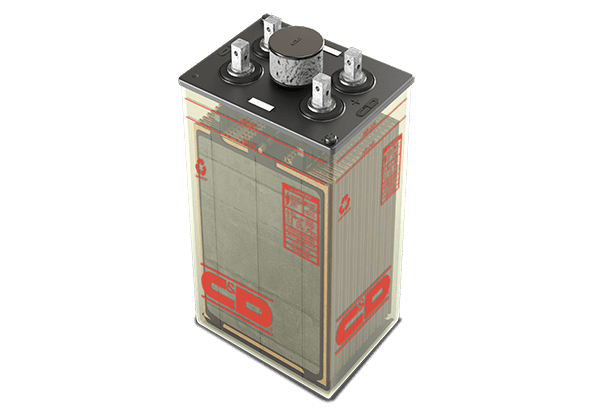

LCT-HP Flooded Battery
LCT-HP Flooded Battery
Capacities from 1680 to 1805 Ampere-hours
The NEBS approved LCT-High Performance (HP) battery excels in Telecom applications. This lead-calcium stationary battery is engineered to provide superior performance. The LCT-1805HP offers 1805 Ampere-hours in a traditional LCT-1680 jar size, packing more power into the same footprint.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
1680 - 1805 Amp-Hours
design life
20 Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
NEBS approved battery systems (cells and racks) TAA Compliant BAA Compliant
industries
Features & Benefits
- Electrical testing to 95% capacity on every cell prior to shipping assures performance of every battery upon delivery
- Long life positive plates cast with a proprietary process and alloy
- Waterbath charging results inconsistently formed plates for reliable performance out of the box (no cycling required in the field)
- Suspended positive plate permits free growth without pressure on jar and cover
- Flame-retardant covers & jars enhance battery plant safety with self-extinguishing properties LOI >32%, UL 94V-0
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- LCT-1805HP offers 1805Ah in a traditional LCT-1680 jar size
- Transparent container allows visual inspection of plates
- Soft rubber post seal minimizes stress on post reducing maintenance requirements
- Computer controlled heli-arc welded post seal results in consistent and reliable seal for less maintenance and longer product life
- All posts and connectors reside above the jar cover
- Optional terminal and connector cover available (P/N RD00907-“L”)
- Narrow 17” (43.18 cm) depth racks available – NEBS qualified
- NEBS approved battery systems (cells and racks) that meet telecom companies’ specifications
Model Technical Data
| Model | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight Net Filled lbs (kg) | Weight Dom. Packed lbs (kg) | Electrolyte per cell gal (l) | Part number |
|---|---|---|---|---|---|---|---|
| LCT-1680HP | 10.62 (270) | 14.12 (359) | 22.10 (561) | 310 (141) | 330 (150) | 8.3 (31.4) | CW17777-PVC |
| LCT-1805HP | 10.62 (270) | 14.12 (359) | 22.10 (561) | 325 (147) | 345 (157) | 8.1 (30.7) | CW17778-PVC |
Notes: 1. Electrolyte weights approximately 10 lbs per gallon (1.210 kg per liter).
2. Height is to top of the post.
Telecom
