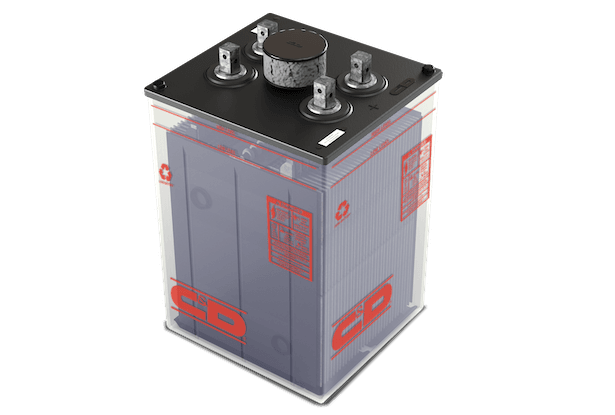

LCZ 2500 Flooded Battery
LCZ 2500 Flooded Battery
Lead-calcium stationary battery for Telecom
The LCZ 2500 battery provides unparalleled reliability and performance over the entire life of the battery. Proprietary manufacturing techniques paired with high-quality components ensure a long battery life with reduced maintenance.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
2496 Amp-Hours
design life
20 Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
TAA Compliant BAA Compliant NEBS-approved battery systems
industries
Features & Benefits
- Long-life positive plates cast with a proprietary process and alloy
- Waterbath charging results in consistently formed plates for reliable performance out of the box (no cycling required in the field)
- Proprietary expander enables stable and uniform float voltages, reducing the need to equalize and resulting in proven 20-year service life
- A suspended positive plate permits free growth without pressure on the jar and cover
- Flame-retardant covers enhance battery plant safety with self-extinguishing properties LOI >32%, UL 94V-0
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- A transparent container allows visual inspection of plates
- Soft rubber post seal minimizes stress on the post reducing maintenance requirements
- Computer-controlled heli-arc welded post seal results in a consistent and reliable seal for less maintenance and longer product life
- No requirement for periodic specific gravity readings
- Narrow 17” (43.18 cm) depth racks available – NEBS approved
- NEBS-approved battery systems (cells and racks) that meet telecom companies’ specifications
Model Technical Data
Model | Plates per cell | Nominal capacities to 1.75 VPC @77°F (includes connector voltage drop) 1 HR | Nominal capacities to 1.75 VPC @77°F (includes connector voltage drop) 3 HR | Nominal capacities to 1.75 VPC @77°F (includes connector voltage drop) 5 HR | Nominal capacities to 1.75 VPC @77°F (includes connector voltage drop) 8 HR | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight Net Filled lbs. (kg) |
---|---|---|---|---|---|---|---|---|---|
LCZ-2500 | 39 | 1296 | 2013 | 2285 | 2496 | 13.14 (334) | 14.12 (359) | 22.63 (575) | 438 (200) |
