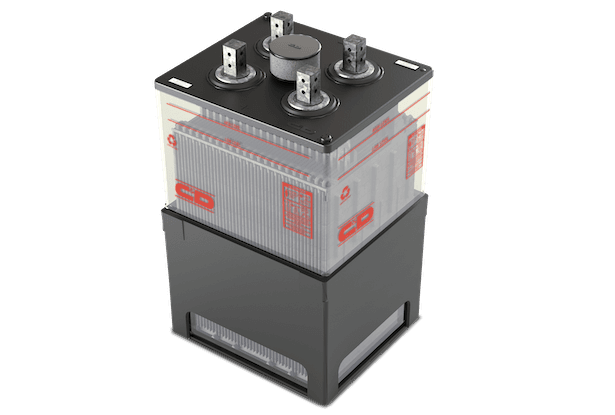

MCT-HP Flooded Battery
MCT-HP Flooded Battery
Standby batteries for large power applications
The NEBS qualified MCT-HP Flooded Lead Acid battery offers 4,000 Ampere-hours with a 20-year design life for large capacity standby power applications for telecom. Used in Telephone Central Offices, Mobile Telephone Switching Office, Cable Head End Sites, Fiber Optic Regenerator Sites, Microwave Repeater Sites, Telephone & Internet Network Nodes.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
4000 Amp-Hours
design life
20 Years
operating environment
Indoor
Certifications & Compliances
TAA Compliant BAA Compliant NEBS Level 3 Certified
industries
Features & Benefits
- Engineered, high purity grid reduces corrosion to achieve 20+ year design life
- Direct replacement upgrade to the widely used MCT-II
- Optimized for 2–5-hour runtime
- High-strength cradles offer support and aids installation
- Large 2-hole posts reduce connection resistance
- Industry-leading 4000Ah Capacity reduces the number of strings needed in large installations
- Waterbath charging results in consistently formed plates for reliable performance
- Computer controlled heli-arc welded post seals result in consistent and reliable seals for less maintenance and longer product life.
- Low calcium grid alloy promotes long life
- Seismic Racking available for NEBS, IBC, UBC, and IEEE requirements
- UL94-VO Jar and Cover
Model Technical Data
| Model | Cell per unit | Plates per cell | Internal Resistance** (Ohms) | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight Net Filled lbs (kg) |
|---|---|---|---|---|---|---|---|
| MCT-4000 HP | 1 | 45 | .000094 | 15.19 (386) | 17.32 (440) | 28.9 (735) | 675 (306) |
**Includes connector.
Telecom
