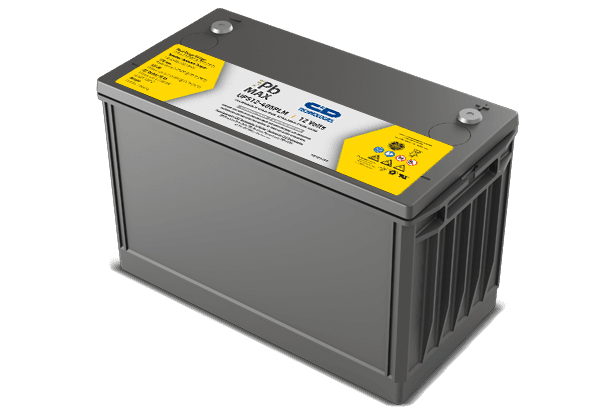

Pure Lead Max AGM Battery

Pure Lead Max AGM Battery

  • Pure Lead Max AGM Battery
  • Pure Lead Max AGM Battery
New

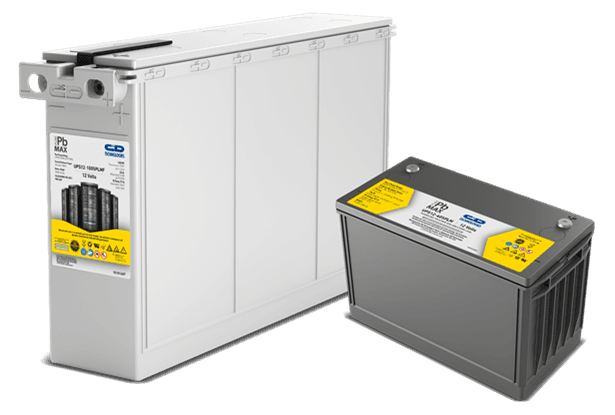

Pure Lead Max UPS Battery

Change your battery. Change your world.

The new Pure Lead Max (PLM) Batteries are C&D’s longest lasting VRLA batteries for UPS systems and have an industry-leading 8-year warranty. Thanks to patented pure lead alloy and catalyst technology, Pure Lead Max can reduce total cost of ownership by offering a sustainable, single-replacement for a 15-year UPS system. Pure Lead Max is the safe choice for your backup needs.

BAttery Quick Facts
Battery type

VRLA Pure Lead AGM (VRLA)

capacity

300-1000 Watts per cell

design life

16 Years

operating environment

Indoor Outdoor Controlled

Certifications & Compliances

TAA Compliant Complies with UL1778, 924, 1989 AND 94 V-2, BS6290-4, IEC-896-2

Proprietary Technologies

0
Pure Lead with MSE Technology
  • Up to 40% longer life than VRLA

  • Up to 24-month shelf life

0
C&D Ohmic Ring™ w/ Lock-On Capability
  • Higher measurement accuracy

  • Improve system reliability

0
C&D True Front Access™
  • Internally welded front terminals

  • Easier to install and maintain

Features & Benefits

Longest life

  • Proprietary pure lead technology combined with catalyst design extends battery life to just a single replacement cycle.

Industry-leading warranty

  • 8-year warranty backed by market leader and proven technology.

Supports sustainability

  • Pure Lead Max batteries are 98% recyclable and manufactured with up to 80% recycled materials.

Safe choice

  • No limitations on where it can be deployed.

Up to 38% less maintenance costs

  • Based on recommended maintenance schedule.

Reduce footprint

  • Extensive portfolio to reduce footprint by up to 28% and battery quantity by up to 40% vs leading competitor.

Features

  • 16-year design life
  • Eurobat: Very Long Life
  • Catalyst technology extends service life
  • MSE’s advanced proprietary paste processing for high active material utilization resulting in low float current
  • Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life
  • Available in both Top terminal and TFA (True Front Access) formats
  • Our TFA design maximizes energy density and minimizes internal resistance by providing a direct connection from the plates to the terminals
  • Patented UL recognized flame-arresting vents in each cell for safety
  • Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
  • Can be operated in any orientation
  • Published rates down to 1 minute

Additional Models and Data

ModelVoltageTerminalCells per UnitMaximum Discharge Current (Amps)Short Circuit Current (Amps @ 0.1 sec)Terminal TypeTerminal Torque
UPS12-305PLM12Top680036001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-355PLM12Top680042001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-405PLM12Top680047001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-495PLM12Top680050001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-545PLM12Top680050001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-605PLM12Top680050001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-675PLMF12Front680051001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-705PLMF12Front690055001/4-20 UNC110 in.-lbs. (12.4 N-m)
UPS12-1005PLMF12Front612006048Insert (M8)160 in.-lbs. (18 N-m)
