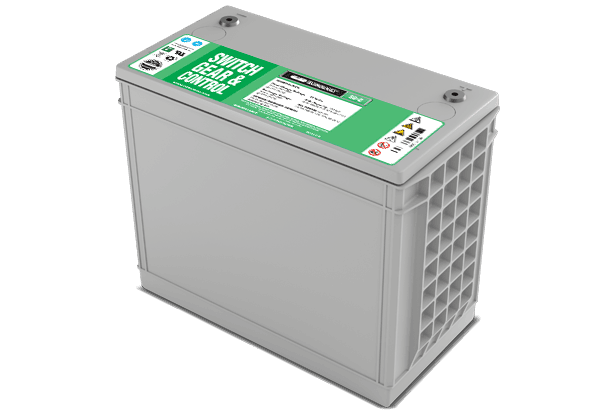

Switchgear & Control Series Battery
Switchgear & Control Series AGM Battery
Extensive life cycle testing ensures the longest and most reliable service life possible
C&D Technologies Switchgear & Control Series AGM Battery (SGC series) provide standby power in Switchgear & Control applications. SGC stationary batteries are powering energy & infrastructure projects including battery change-out trucks, electric utility substations, telephone backup, microwave sites, signaling sites, offshore platforms, and more.
BAttery Quick Facts
Battery type
VRLA Standard AGM (VRLA)
capacity
30 - 126 Amp-Hours
design life
10+ Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
TAA Compliant Complies with UL1778, UL924, UL1989 and UL94 UL94-V0 Flame retardant Case and Cover
industries
Features & Benefits
- 10+ year design life
- 12-volt monobloc
- Thick positive grids and superior grid alloy for improved high temperature performance and longer life
- Technology: Valve Regulated Lead Acid (VRLA) Absorbed Glass Mat (AGM)
- Absorbed Glass Mat (AGM) technology for efficient gas recombination of 99% plus
- AGM technology is non-hazardous for easy shipping and to eliminate periodic water maintenance
- Extended service life in elevated temperature applications
- Premium materials and components
- Available in top terminal designs
- Thermally welded case-to-cover bond for hermetic, leak free seal
- Molded in terminal bushing for durability and leak free seal
- Flame retardant polypropylene case and cover – self-extinguishing with LOI > 28
- Patented flame arresting pressure relief vents
Model Technical Data
| Model | Rated Battery Capacity @8 hr rate to 1.75 VPC @77°F (25°C) | Maximum Discharge Current | Short Circuit Current @0.1 seconds | Ohms Impedance 60 Hz (Ω) | Weight lbs (kg) | Voltage per unit |
|---|---|---|---|---|---|---|
| SGC 12-30 | 30.4 Ah | 500 Amps | 2150 Amps | 0.0100 Ohms | 27.3 (12.4) | 12 |
| SGC 12-45 | 45.5 Ah | 600 Amps | 2500 Amps | 0.0060 Ohms | 40.6 (18.4) | 12 |
| SGC 12-70 | 69.1 Ah | 800 Amps | 3100 Amps | 0.0050 Ohms | 55.8 (25.3) | 12 |
| SGC 12-80 | 79.0 Ah | 800 Amps | 3300 Amps | 0.0040 Ohms | 66.6 (30.2) | 12 |
| SGC 12-90 | 87.6 Ah | 800 Amps | 3600 Amps | 0.0035 Ohms | 74.5 (33.8) | 12 |
| SGC 12-125 | 126.0 Ah | 800 Amps | 5000 Amps | 0.0023 Ohms | 102.3 (46.4) | 12 |
