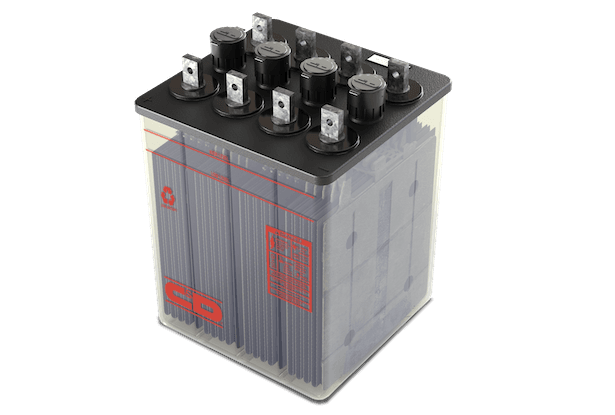

JC-HP Flooded Battery
JC-HP Flooded Battery
Capacities from 122 to 212 Ampere-hours
The JC-High Performance (HP) battery offers a wide range of uses in Telecom and UPS. JC-HP flooded stationary batteries support projects in telecom, UPS, electric utility substations, manufacturing facilities, petrochemical processing plants, pipelines, emergency systems, railway signals, and more.
BAttery Quick Facts
Battery type
Flooded (VLA)
capacity
122 - 212 Amp-Hours
design life
20 Years
operating environment
Indoor Outdoor Controlled
Certifications & Compliances
TAA Compliant BAA Compliant
Features & Benefits
- Cell design reduces footprint and installation time
- Individual posts allow isolation and monitoring of single cells
- Soft-cup and epoxy post seal allow growth without transmitting force to the cover
- Optimized grid alloy and design minimizes plate growth
- Low evaporation, flip top vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- Top suspended positive plate design allows free downward growth without pressure on jar, cover, or post seal — extending reliability and product life
- Wrapped separator design extends cycle life — improving product reliability
- 100% Out of box capacity
- Soft-cup and epoxy post seal allows growth without transmitting force to the cover
- Optimized grid alloy and design minimizes plate growth
Model Technical Data
| Model | Cells per unit | Plates per cell | Nominal Ah capacity* 1.1215 SG | Nominal Ah capacity* 1.250 SG | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight lbs (kg) |
|---|---|---|---|---|---|---|---|---|
| 4JC(C)-05HP | 4 cells connected in series for 8V units | 5 | 122 | 129 | 10.2 (261) | 10.0 (254) | 14.6 (371) | 104 (47) |
| 4JC(C)-07HP | 4 cells connected in series for 8V units | 7 | 168 | 177 | 10.2 (261) | 10.0 (254) | 14.6 (371) | 120 (54) |
| 4JC(C)-09HP | 4 cells connected in series for 8V units | 9 | 183 | 212 | 10.2 (261) | 10.0 (254) | 14.6 (371) | 140 (64) |
*8 hour capacity to 1.75vpc @ 77°F (for S.G. of 1.215)
