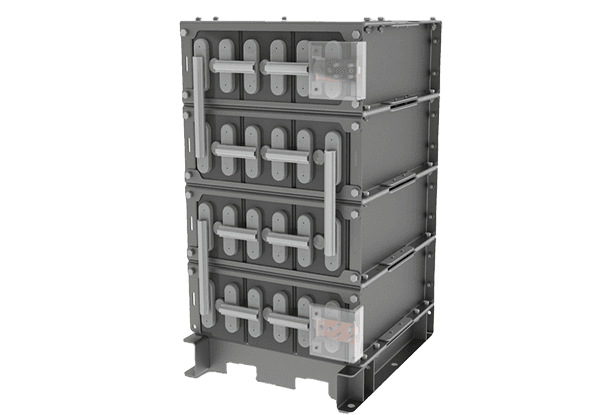

Liberty MSE Pure Lead AGM Battery

Liberty MSE Pure Lead AGM Battery

  • Liberty MSE Pure Lead AGM Battery

Liberty MSE Pure Lead AGM Battery

The Liberty MSE batteries feature the latest battery technology in a space-efficient, cost-effective package. MSE technology provides low operating float current and unmatched operational life.

BAttery Quick Facts
Battery type

VRLA Pure Lead AGM (VRLA)

capacity

600 - 1600 Amp-Hours

design life

20 Years

operating environment

Indoor / Outdoor Controlled

Certifications & Compliances

TAA Compliant ISO 9001 – Quality System Certification

Proprietary Technologies

0
Pure Lead with MSE Technology
  • Up to 40% longer life than VRLA

  • Up to 24-month shelf life

0
C&D Ohmic Ring™ w/ Lock-On Capability
  • Higher measurement accuracy

  • Improve system reliability

Features & Benefits

  • Proprietary calcium alloys to minimize positive grid corrosion and growth – maximizes battery life
  • Proprietary plate processing for high utilization of active material – results in high energy density and low float current
  • Robust polypropylene container and cover – enhances product quality and improves strength of materials for safe operation
  • Tin-plated copper alloy inserts for reduced maintenance and increased safety
  • 50 AH and 100AH Plates available
  • Modular design for ease of installation and stacking flexibility
  • Reduced system hardware for rapid installation and reduction in maintenance time
  • Space saving design for the greatest amount of power in a small footprint
  • Advanced formation process results in a narrow float voltage window making on-site float matching unnecessary
  • Industry leading warranty
  • Advanced micro-porous Absorbent Glass Mat separators for ultra-low float current reduces grid corrosion for a long, usable service life
  • Flame retardant, UL94V0/28% LOI
  • UL-Recognized Component
  • High-strength, leak-free polymer container allows for non-restricted shipping:
    • Water: non-hazardous per IMDG Amendment 27
    • Surface: non-hazardous per DOT-CFR title 49, 171-189
    • Air: IATA/ICAO, provision A67
  • Many systems meet IBC and UBC seismic requirements
Cell SpecificationsLiberty MSE Pure Lead AGM Battery
Voltage1 cell, 2 VDC Nominal
Energy-saving operating temperature77°F (25°C)
Connection torqueInitial 110 in-lbs (12.4 N-m); Retorque 110 in-lbs (12.4 N-m)
Recommended float charging voltage2.25-2.27 volts per cell average at 77°F (25°C)
Charger compensation temperature / voltage-2 mV/cell/°F above 77°F (-3.6 mV/cell/°C above 25°C); +2 mV/cell/°F below 77°F (+3.6 mV/cell/°C below 25°C)
