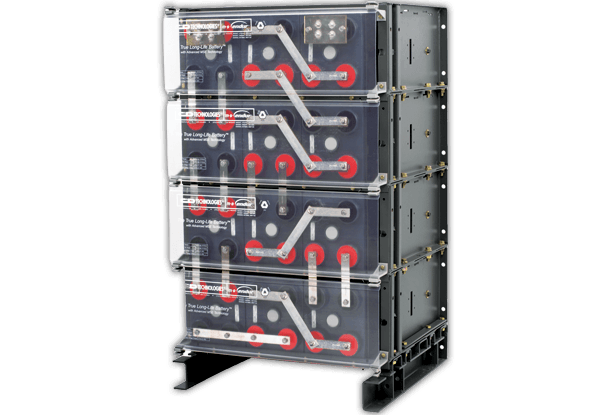

msEndur II Pure Lead AGM Battery

msEndur II Pure Lead AGM Battery

  • msEndur II Pure Lead AGM Battery

msEndur II Pure Lead AGM Battery

The original high-temperature-capable VRLA battery

C&D’s msEndur II AGM Pure Lead battery is the most advanced 2V VRLA solution for Telecom, UPS, and Utility applications. As the original high-temperature-capable VRLA battery, it brings decades of proven field performance. By combining the service life reliability of a flooded battery with the performance energy density of a valve-regulated battery, the msEndur is the True Long-Life Battery™ for controlled and uncontrolled environments.

BAttery Quick Facts
Battery type

VRLA Pure Lead AGM (VRLA)

capacity

345 - 2180 Amp-Hours

design life

20 Years

operating environment

Indoor Outdoor Controlled

Certifications & Compliances

TAA Compliant Certified as NEBS Level 3 compliant to Earthquake Risk Zone 4 in various system configurations

Features & Benefits

  • Modular design for ease of installation and stacking flexibility
  • Space saving design for the greatest amount of power in a small footprint
  • Tin-plated copper alloy connectors minimize maintenance
  • C&D Ohmic Ring® for ease of maintenance readings. With specially adapted probes only one technician is required to take readings
  • Advanced micro-porous ABSORBED GLASS MAT separators for ultra-low float current — reduces grid corrosion for a long, usable service life
  • Proprietary calcium alloys to minimize positive grid corrosion and growth — maximizes battery life
  • Robust polypropylene container and cover — enhances product quality and improves strength of materials for safe operation with flammability rating UL94 VO, LOI>28%

Advanced High Temperature Capability

  • Low float current technology extends product life at higher application temperatures
  • Natural convection through advanced module design promotes uniform temperature and enhances resistance to thermal walkaway events
  • Warranties available for average application temperatures up to 95˚F (35˚C)

Certifications & Compliances

  • TAA Compliant
  • Certified as NEBS Level 3 compliant to Earthquake Risk Zone 4 in various system configurations
  • UL-Recognized Component
  • Compliant to highest levels of UBC, IBC, IEEE and NEBS seismic standards
  • Exceed 1997 UBC Zone 4 seismic requirements at or below grade installations
  • Exceed 2000/2003 IBC requirements for 1.25%g level
  • Many systems compliant to IEEE-693 High Level

Industries

Proprietary Technologies

0
C&D Ohmic Ring™ w/ Lock-On Capability
  • Higher measurement accuracy

  • Improve system reliability

0
Pure Lead with MSE Technology
  • Up to 40% longer life than VRLA

  • Up to 24-month shelf life
