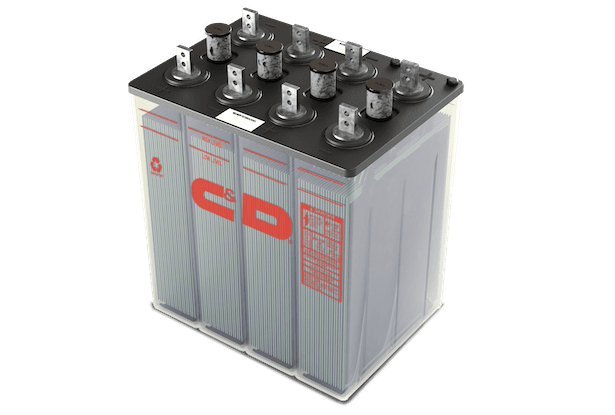

XT-Series Flooded UPS Battery

C&D Technologies engineered XT-Series Flooded batteries to provide superior performance and reliability for Data Center and Telecom applications. These batteries are designed using proprietary techniques and quality components and materials for reduced maintenance and extended battery life.

BAttery Quick Facts
Battery type

Flooded (VLA)


0.857 - 4.334 kW Per Cell

design life

20 Years

operating environment

Indoor Outdoor Controlled

Certifications & Compliances

TAA Compliant BAA Compliant

Features & Benefits

  • Low-maintenance lead-calcium alloy extends watering intervals
  • Design is optimized for high-rate, short duration discharges
  • Soft rubber post bushing minimizes stress on post seal
  • Leak-free design using heli-arc process unique to C&D
  • Flame retardant covers standard to enhance battery plant safety
  • Electrical testing to 100% capacity assures performance of every battery
  • Hardened, lead-alloy terminals or copper-inserted posts provide better conductivity and tighter connections requiring less maintenance
  • 20-year life expectancy in float service at 77°F (25°C) ambient temperature
  • Warranty for cycle duty or float service is available
  • Heli-arc process
