Liberty 1000 Lead-Calcium AGM Battery

Liberty 1000 Lead-Calcium AGM Battery

  • Liberty 1000 Lead-Calcium AGM Battery

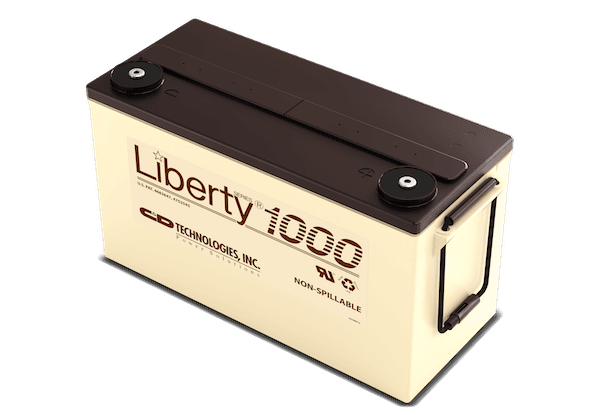

Liberty 1000 Lead Calcium AGM Battery

Liberty 1000 Lead-Calcium batteries offer long battery life with minimal maintenance due to C&D's patented processes. C&D Technologies manufactures these valve regulated lead-calcium AGM batteries for standby applications. Liberty 1000 stationary batteries fit virtually anywhere while providing superior performance in the most demanding applications.

BAttery Quick Facts
Battery type

VRLA Standard AGM (VRLA)

capacity

100 - 600 Amp-Hours

design life

10 Years

operating environment

Indoor Outdoor Controlled

Certifications & Compliances

TAA Compliant UL-Recognized Component

Features & Benefits

  • The Liberty 1000 Lead-Calcium Battery offers advanced, computer-controlled thermal cover-to-jar weld for greater reliability and consistency
  • Automated, state-of-the-art, cast-on strap process that ensures consistent, high-quality, low electrical-resistance welds
  • Through-the-partition intercell connection shortens current paths and increases performance
  • Copper-to-copper connections minimize resistance, especially at high rates, and shorten maintenance time by reducing the need for retorquing connections
  • Patented and time-tested C&D post seal design with secondary epoxy seal to increase integrity for leak-free operation and superior reliability
  • Two-fold vent system, comprised of a low-pressure safety valve with flash arrester, minimizes bulging and prevents flashback explosion from external ignition source
  • Thick radial grid design improves current carrying capacity and performance resulting in long float life
  • Fully automated vacuum and filling operation results in uniform acid volume distribution and consistent float voltage
  • Non-spillable designation for lower shipping cost
  • High-impact resistant PVC container and cover provide excellent water vapor retention, preventing dry out and oxygen infiltration
  • Tested in accordance with Bellcore TR-NWT-000766 specifications
  • 100 percent of cells tested for conductance, voltage, and capacity
  • 100 percent of cells tested to 95 percent capacity at the 8-hour rate to 1.75 VPC
  • Recyclable
